The Hypro 1700C Roller Pump is the ideal solution for low-pressure sprayer applications, offering a maximum flow rate of 45 GPM and a pressure limit of 200 PSI. Perfect for applying insecticides, herbicides, liquid fertilizers, or aromatic solvents, this pump features a rotary-action roller principle. With its unique design, it eliminates the need for check valves during operation, resulting in lower friction and reduced starting torque compared to other pumps. Choose the Hypro 1700C Roller Pump for a reliable and efficient solution for all your spraying needs.
Instruction Manual

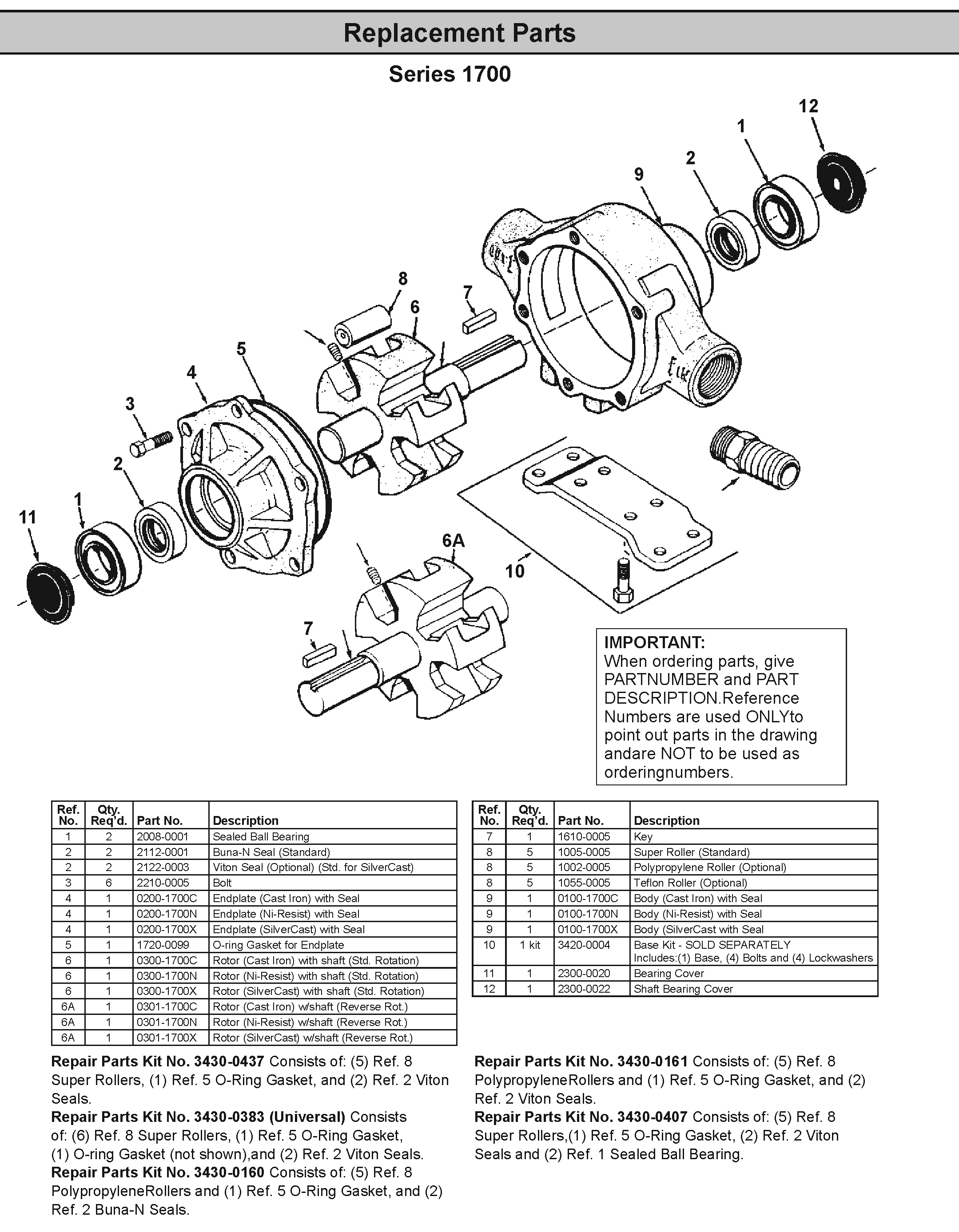

Part Breakdown
Roller Material Comparison
- Part #:
- 1700C
- MPN:
- 1700C
- Manufacturer:
- Hypro
- Material:
- Cast Iron
- Gasket Material:
- Viton
- Inlet:
- 1" NPT
- Maximum Flow Rate (GPM):
- 45
- Maximum Pressure (PSI):
- 200
- Maximum RPM:
- 1000
- Maximum Temperature (F°):
- 140
- Outlet:
- 1" NPT
- Pump Series:
- 1700 5-Roller
- Shaft:
- 0.9375
- Shaft Rotation:
- CCW
- Material:
- Cast Iron
- Gasket Material:
- Viton
- Inlet:
- 1" NPT
- Maximum Flow Rate (GPM):
- 45
- Maximum Pressure (PSI):
- 200
- Maximum RPM:
- 1000
- Maximum Temperature (F°):
- 140
- Outlet:
- 1" NPT
- Pump Series:
- 1700 5-Roller
- Shaft:
- 0.9375
- Shaft Rotation:
- CCW
- a_mpn:
- 1700C
